Acoustic Insulation
Sound Barriers & Enclosures
OSHA-aligned acoustic solutions for compressor rooms, DG sets, and manufacturing floors. Multi-density rockwool combined with mass-loaded barriers and perforated cladding for target dB reductions.

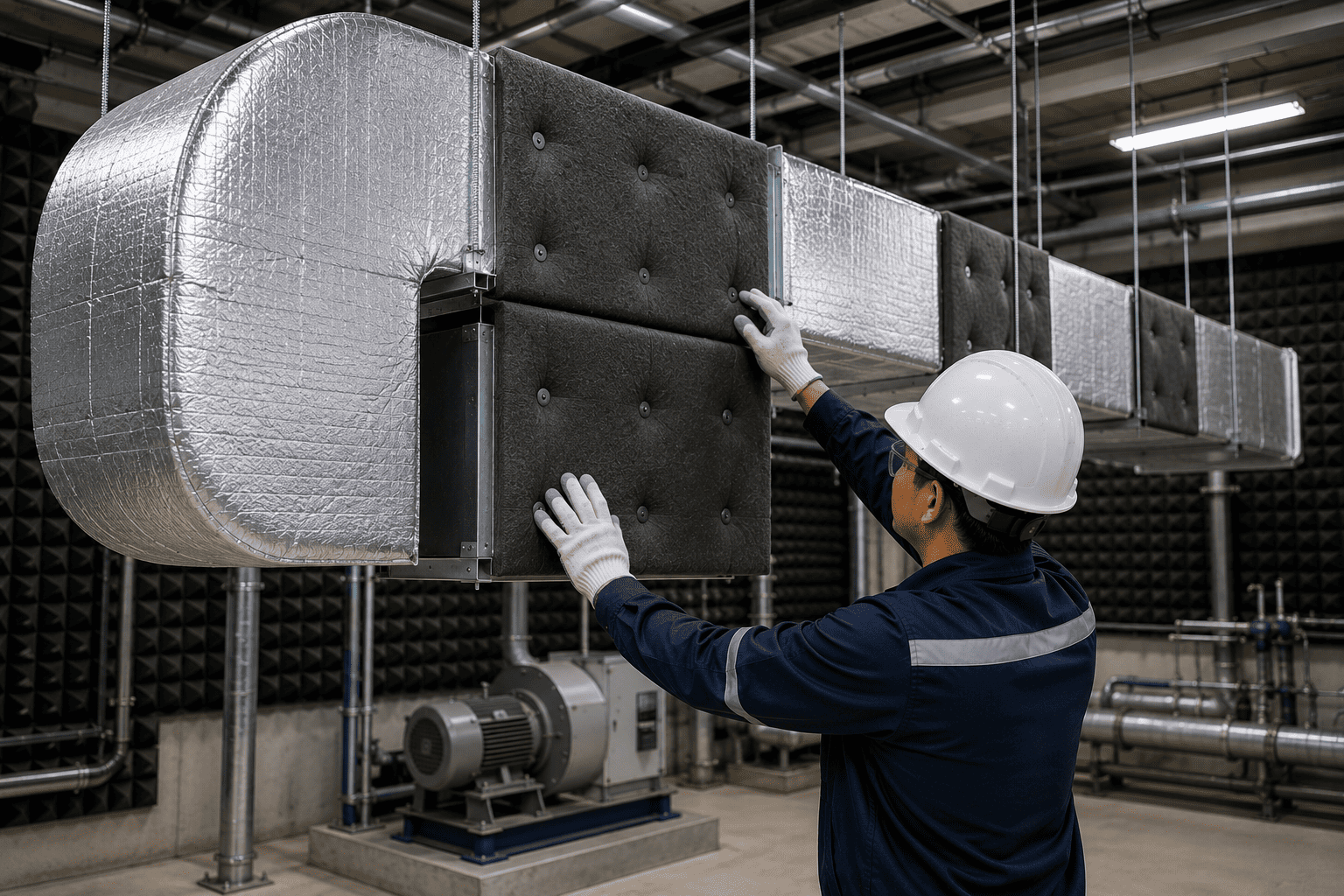

Acoustic Insulation Engineering
OSHA-aligned acoustic solutions for compressor rooms, DG sets, and manufacturing floors. Multi-density rockwool combined with mass-loaded barriers and perforated cladding for target dB reductions.
Every acoustic package is engineered against a target noise-reduction spec (typically 15–30 dB(A)) with measured pre/post readings, ensuring OSHA compliance and workplace safety.
Where Acoustic Insulation Delivers Value
DG Sets
Diesel-generator enclosures & rooms
Compressor Rooms
Air & gas compressor stations
Pump Rooms
Utility & process pump halls
Wall Absorbers
Perforated wall & ceiling systems
Manufacturing
Shopfloor noise-abatement partitions
Loading Bays
Reverberation control in bay areas
Engineered Material Stack
BOQ-driven procurement from vetted OEMs — with mill certificates on demand for every batch.
- Multi-density rockwool (40–120 kg/m³)
- Mass-loaded vinyl barrier (5 kg/m²)
- Perforated GI/aluminium cladding
- Acoustic ceiling tiles
- Foil-scrim facings
- Vibration-dampening pads
Why Clients Choose This Module
Worker Safety
Prevents long-term hearing damage
Focus Productivity
Reduced noise fatigue on workshop floor
Regulatory
Meets OSHA / IS 4954 noise limits
Community Compliance
Reduced boundary-wall noise emissions
How We Deliver Acoustic Insulation
Site Survey
Thermal audit, drawing review, BOQ scoping.
Engineering
Material selection, thickness calcs, MTO release.
Installation
Certified crew, layered systems, hold-point QA.
Handover
Punch-list close, QA dossier, warranty sign-off.
Industries Deploying This Module
Acoustic Insulation FAQs
Typical enclosure treatments deliver 15–30 dB(A) reduction. We measure pre/post noise levels and design against your target dB spec.
Our systems combine acoustic and thermal management with ventilation louvres. DG-set enclosures include forced-air ventilation to prevent heat build-up.
Yes — we use non-combustible rockwool as the acoustic core. External cladding is GI/aluminium. Full fire-rated systems available where required.
Need a quote on Acoustic Insulation?
Get the Acoustic Insulation Technical Datasheet
A print-ready A4 datasheet with material specs, thickness calc guidance, applications, delivery process, and QA/QC hold points — everything your procurement team needs for a spec-compliant BOQ.
- Material stack, densities & spec compliance
- QA/QC hold points & delivery process
- Ready to share internally as PDF
